Stainless Steel Cleat, Version 1

Marine Hardware
Stainless Steel Cleat, Version 1, image 1

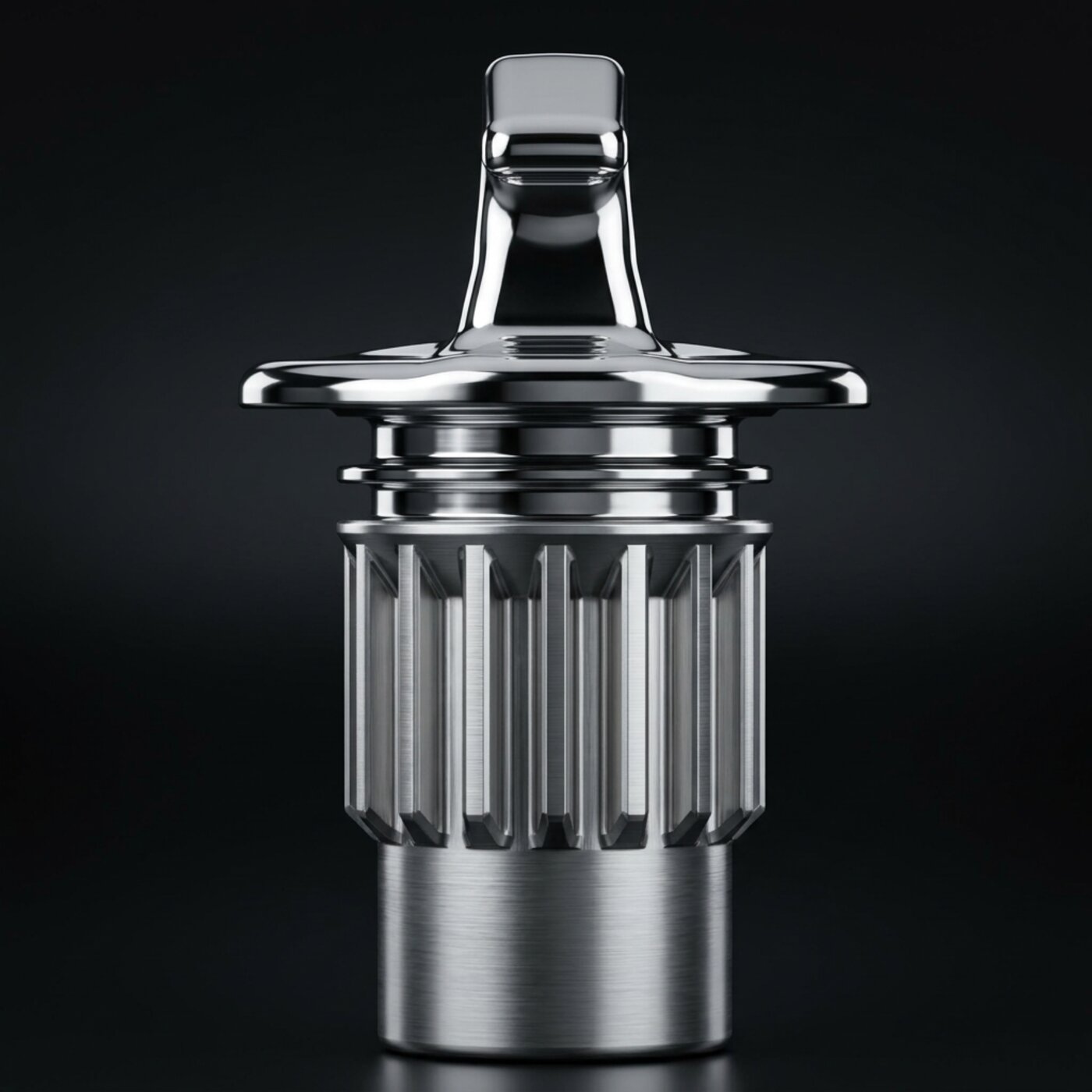

Stainless Steel Cleat, Version 1, image 2

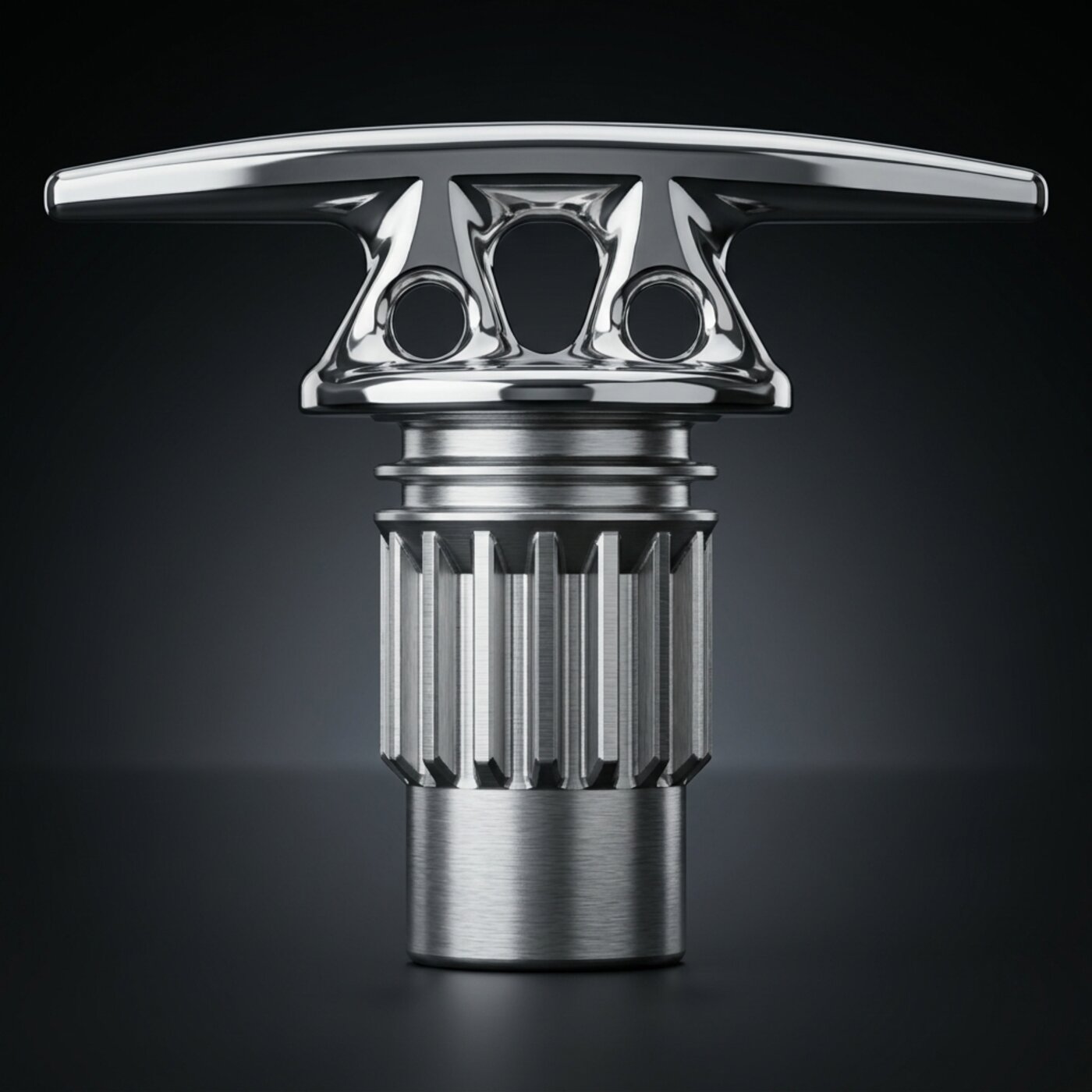

Stainless Steel Cleat, Version 1, image 3

Project images shown are concept renders. Photographs of the physically manufactured products can be seen on the Gallery page.

Overview

A stainless steel deck cleat designed to be fully compatible with the Burnewiin interface system. Version 1 explored the primary geometry and load path, establishing the cleat's structural performance and interface fit. Investment cast in 316 stainless steel for long-term corrosion resistance in saltwater marine environments.

Read how this part is made, from 3D-printed wax pattern to finished 316 stainless casting →

  • Year2023
  • Categories Marine Hardware
  • ServicesConcept Design, Design Development, Manufacturing Data
  • Materials316 Stainless Steel
